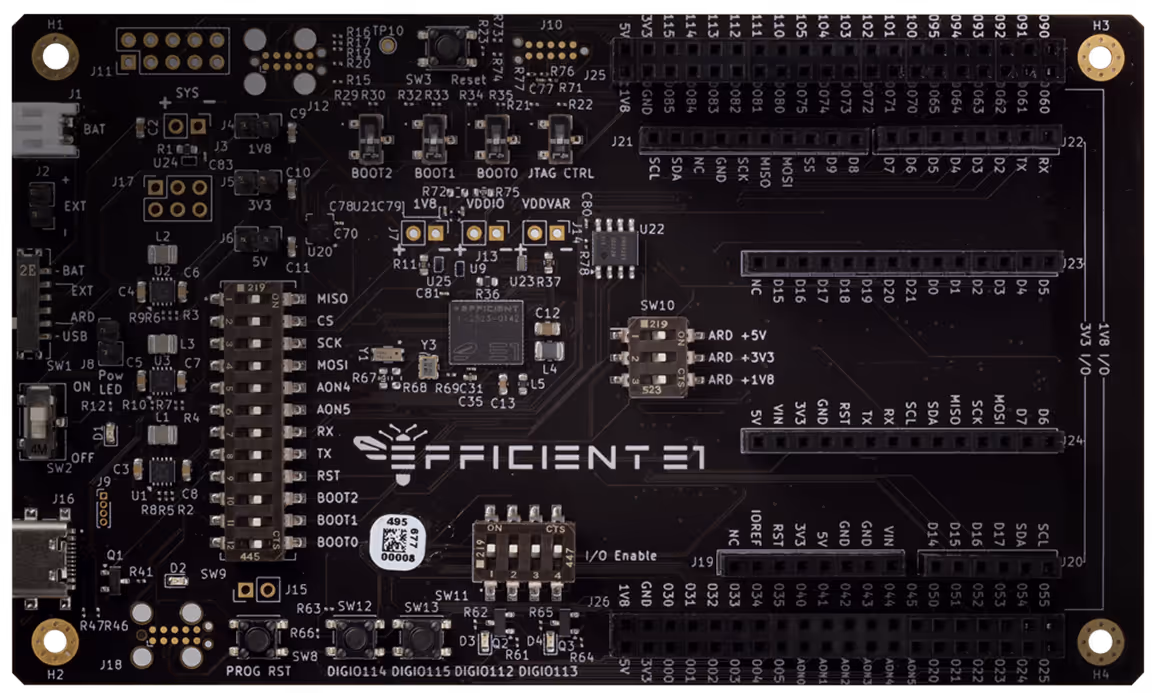

Introducing the Electron E1 EVK

Unlock ultra-efficient innovation with the new Electron E1 EVKs—ready-to-use platforms for building, testing, and optimizing on the Electron E1 processor.

Scroll for more

Thank you! Your submission has been received!

When energy is no longer the tradeoff, what will you create?

The Electron E1 is powered by our Fabric architecture, a spatial dataflow design that eliminates the bottlenecks of traditional step-by-step execution. Developers still get the familiar programming experience they expect—but with dramatically higher energy efficiency.

The E1 EVK is designed to make it as easy as possible to explore that potential. Whether you’re bringing up new firmware, running power characterization, or porting existing software, the EVK provides:

A plug-and-play development workflow
Built-in energy instrumentation
Arduino-compatible expansion
Multiple power options for real-world scenarios
A complete SDK and quick-start documentation

Product documentation

When energy is no longer the tradeoff, what will you create?

Download product brief

Access datasheet

Thank you! Your submission has been received!

Oops! Something went wrong while submitting the form.

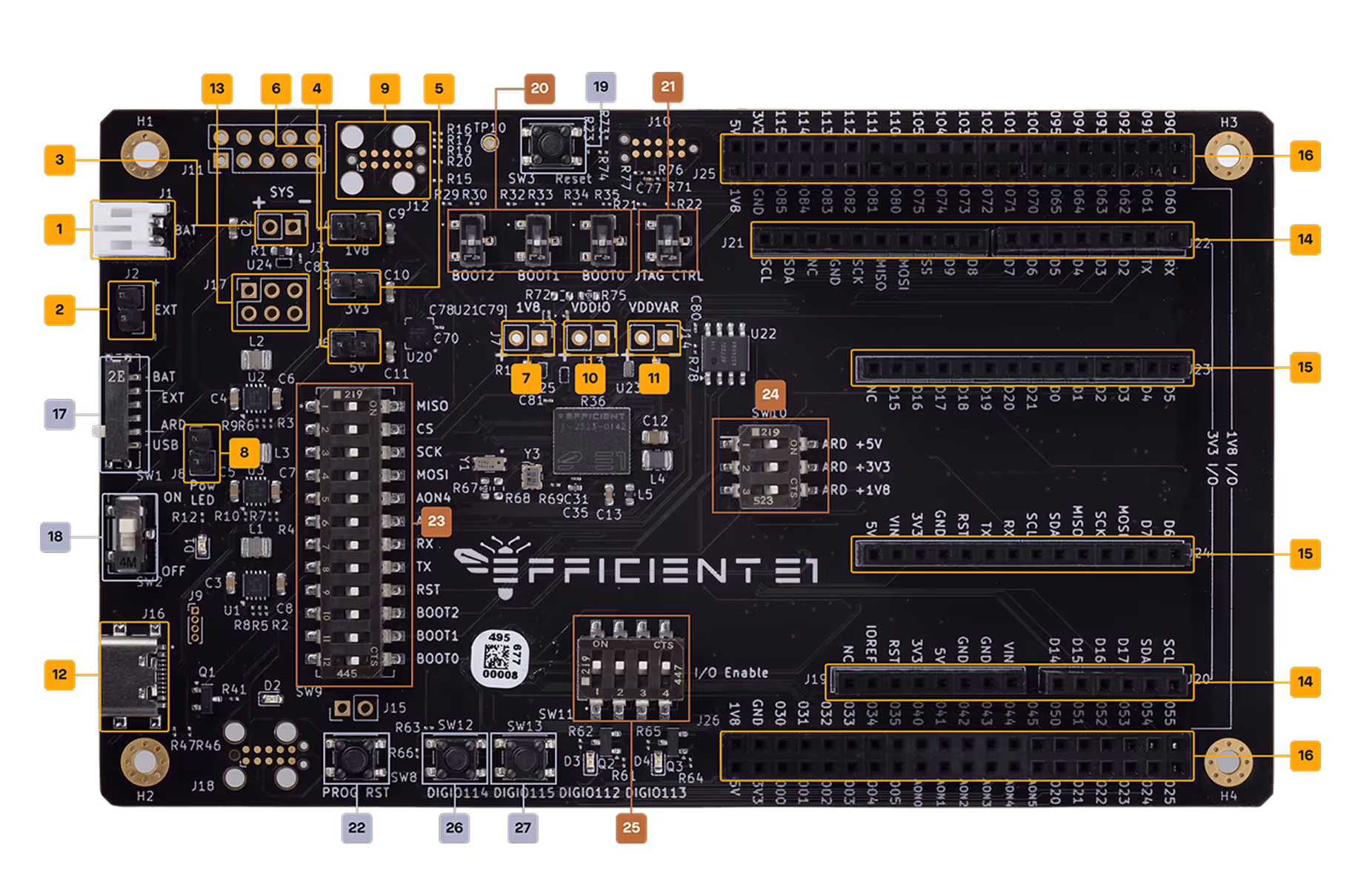

Electron E1 EVK jumper/switch map

Jumper/switch positions and configurations

Component	Position	Description
J1	1	Battery connector.
J2	2	External power connector.
J3	3	Parallel connection for SYS shunt resistor.
J4	4	Jumper connecting the 1V8 power supply to the E1 hardware and headers.
J5	5	Jumper connecting the 3V3 power supply to the E1 peripherals and headers.
J6	6	Jumper connecting the 5V0 power supply to the E1 peripherals and headers.
J7	7	Parallel connection for 1V8 shunt resistor.
J8	8	Jumper enabling power on LED.
